| MODEL NO | FM535SLA |
| TYPE | Articulated chassis |
| FUNCTION | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| PRODUCTIVITY | （10.5cph）,4.5 BATCHS/HOUR |
| DRIVE | The engine is directly connected to the280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive |
| STEERING | Hydraulic articulated steering |
| ENGINE | Yuchai Power Ycd4j22t Foshan 16, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 85KW |
| SPEED | dual altitude, low speed 0-25 kph, high speed 0-40 kph |
| CLIMBING ABILITY | 40° |
| GEAR NUMBERS | Four forwards, four backwards |
| FUEL CONSUMPTION | working state 3L. |
| TIRE | 12R-22.5 steel wire high pressure vacuum tire |
| DRUM | Geometric volume 5.5 cubic meters, the best stirring 3.5 cubic meters |
| SPIRAL BLADE IN TANK | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
| TILT OF MIXING TANK | 16° |
| SHOVEL | 0.65m³ |
| BUCKET DISCHARGE SWITCH | hydraulic gate |

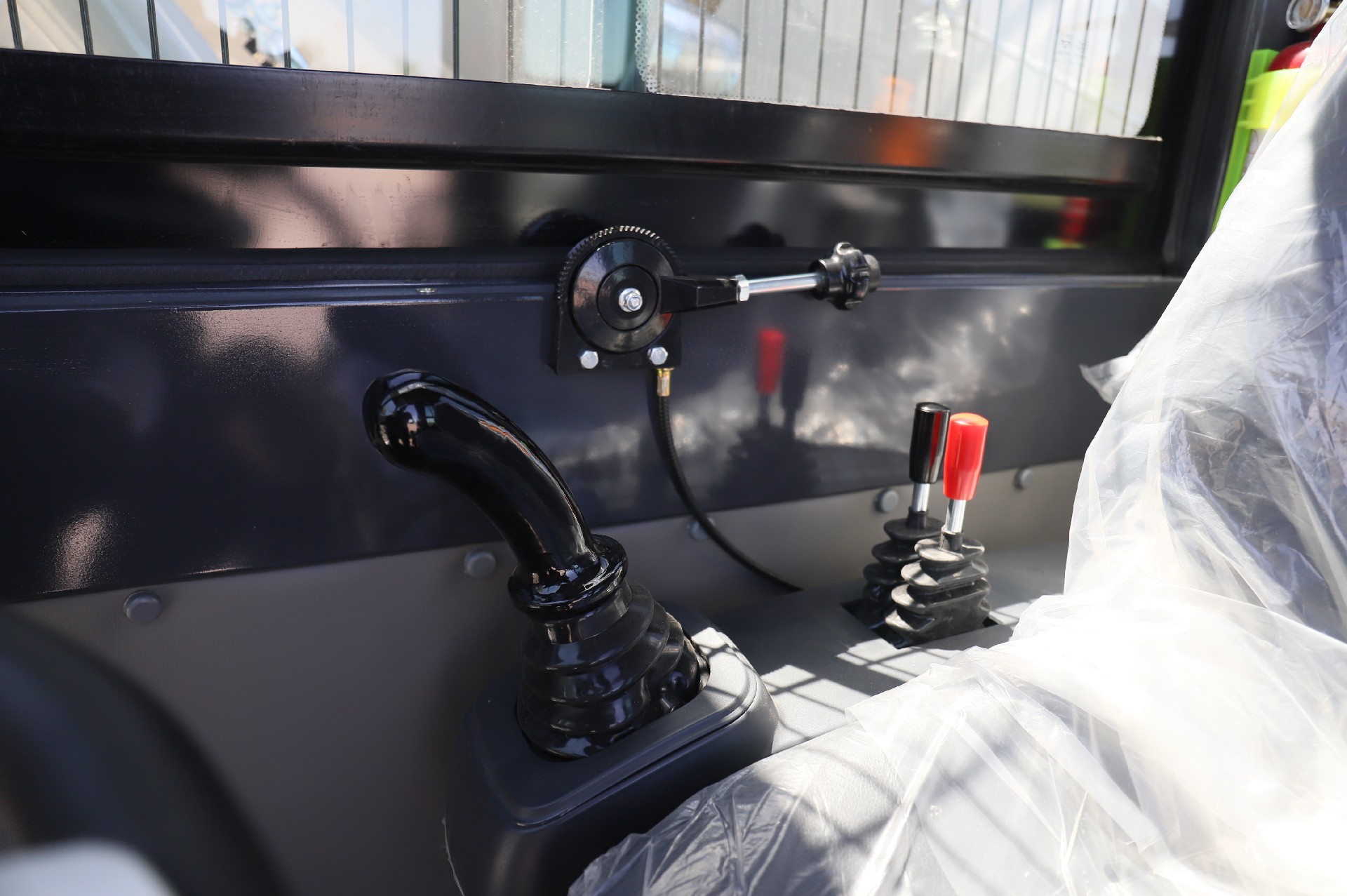

| OPERATION HANDLE | Two hydraulic pilot joysticks control the scoop, upper arm, 271 turn, lift tank |
| TIPPING CHUTE |
equipped with one150 cm detachable chute to increase discharge length |
| MOVING HYDRAULIC |
Torque converter（Soyota） |
| BRAKE | Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper |
| WORK HYDRAULIC | PUMP/valve: FARSEE |
| MIXING SYSTEM | SPEED REDUCER:（Soyota）
Mixing motor（FMAN） |
| WATER SUPPLY | HYDRAULIC DRIVING SELF-PRIMIING PUMPS. |
| HIGH-PRESSURE WATER PUMP WASH | HIGH-PRESSURE WATER PUMP WASH |
| VOLTAGE | Battery 24V-100A 2 pieces |
| DRICE AXLE | CAN |
| WEIGHING SYSTEM | Electronic weighing system (language optional） |
| HYDRAULIC OIL BOX | TANKAGE180L, SUMMER:NO68 HYDRAULIC OIL, WINTER:NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL |
| Water tank capacity | 800L |
| Diesel tank capacity | 130L |
|
| whole weight | 8100kg |
| Dimension | 7100*2750*3300mm |
