Wheel Loader
    ItemUnitFM920
    Overall performance parameters specificationMinimum turning radius mm 6500
    Theoretical Gradeability  °30
    Maximum  speed Km/h33
    Maximum dumping heightmm 3600
    Maximum dump reach

    Discharging distance mm 600
    Discharging angle°35
    Bucket capacity 1.11
    Bucket width/depth mm 2200/560
    Wheel basemm 2850
    Lifting time(unladen)s5.8
    Lowering time(unladen)s3.94
    Discharging time(unladen)s1
    Total cycle times10.7
    Maximum digging force kN65
    Maximum traction effort kN58
    Maximum breakout forcekN
    Tipping loadkN
    Main dimensions and weight specificationVehicle length mm 7000
    Vehicle heightmm2971
    Vehicle widthmm2240
    Rated loading weightKg2000
    Operating weightKg6325
    Total weightKg
    Minimum ground clearance mm350
    Wheel trackmm1650
    EngineModel
    YCD4J22T-115
    Manufacturer
    Yuchai
    Rated power kW85
    Rated speedr/min2600
    DisplacementL4.33
    Number of cylinders
    4
    Cylinder diametermm105*125
    Maximum torque N.m390
    Minimum fuel consumption rateg/kW. h≤245
    TransmissionModel
    280
    Gearshift
    Front 4 rear 4
    Braking type
    Air brake
    Axle
    Big hub
    Tire type
    16/70-24
    Front tire air pressureMpa0.33
    Rear tire air pressureMpa0.3
    FuelVolumeL80
    Hydraulic oil L99
    Axle - SingleL14
    Engine L11
    Transmission L28
    Braking system L3
    Steering systemModel
    Full hydraulic steering
    Steering angle °33
    System working pressureMpa16

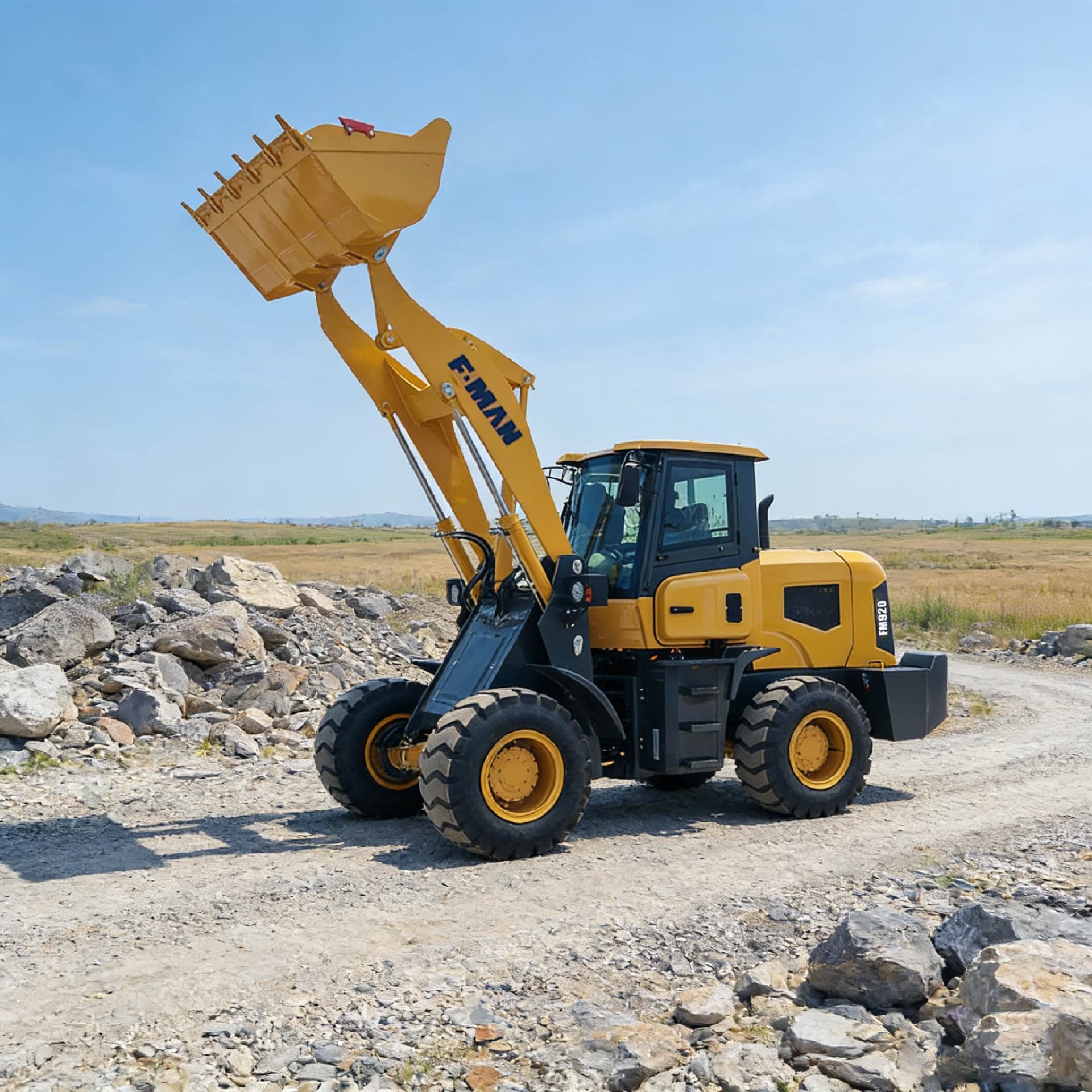

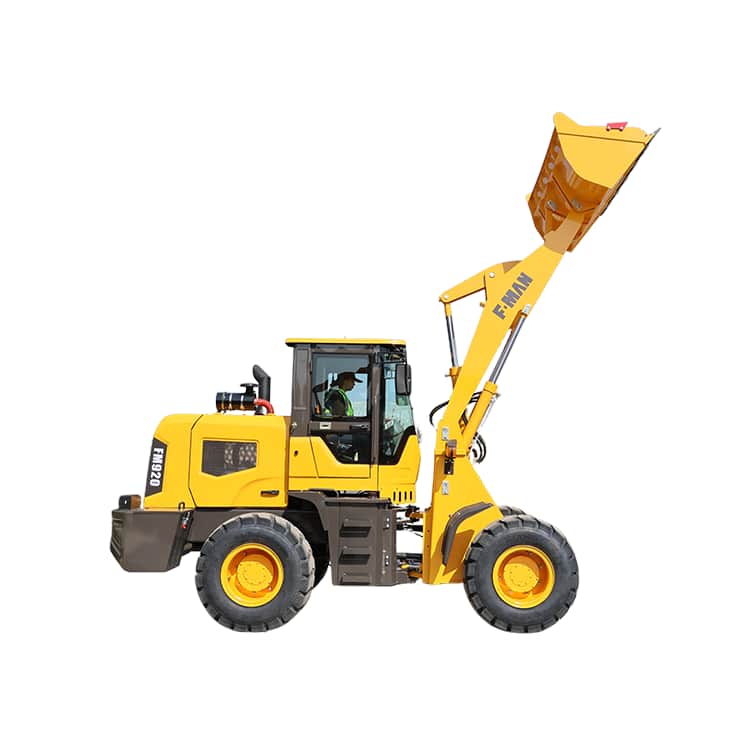

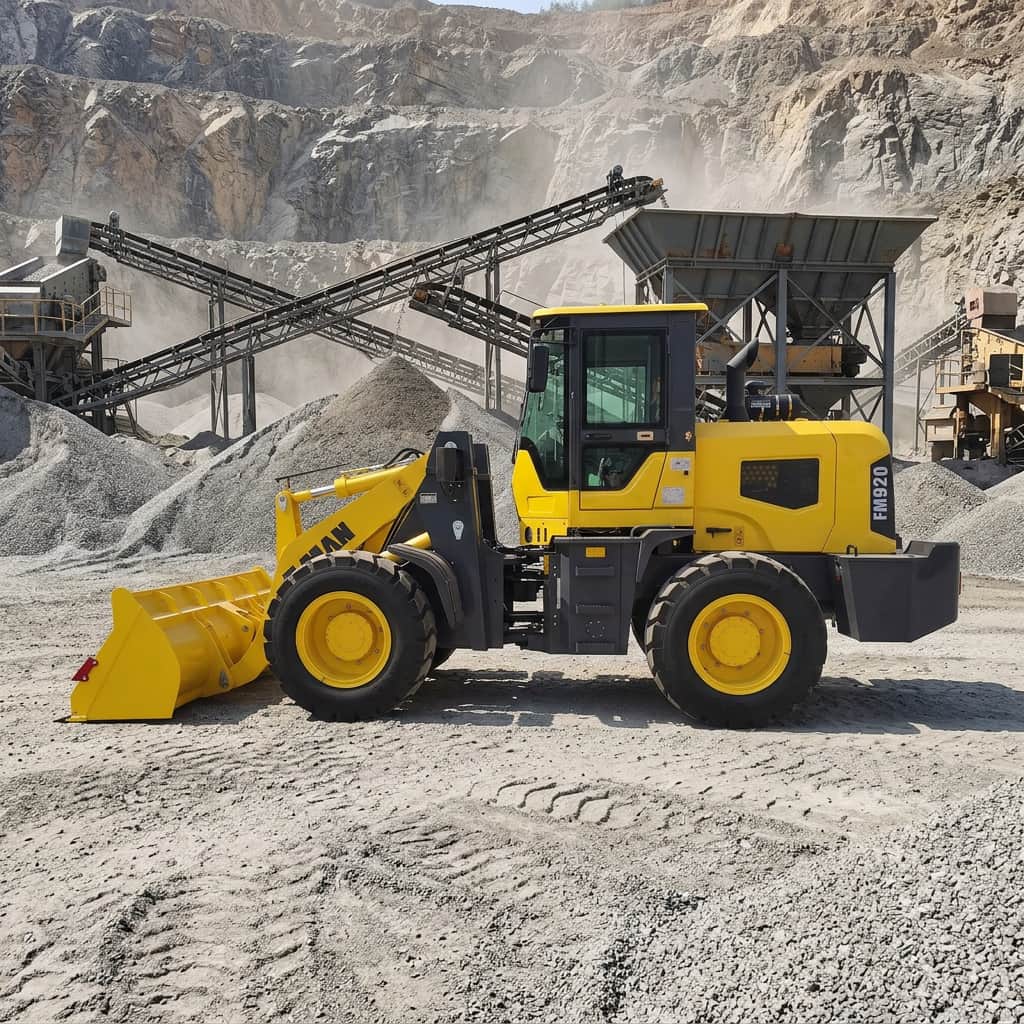

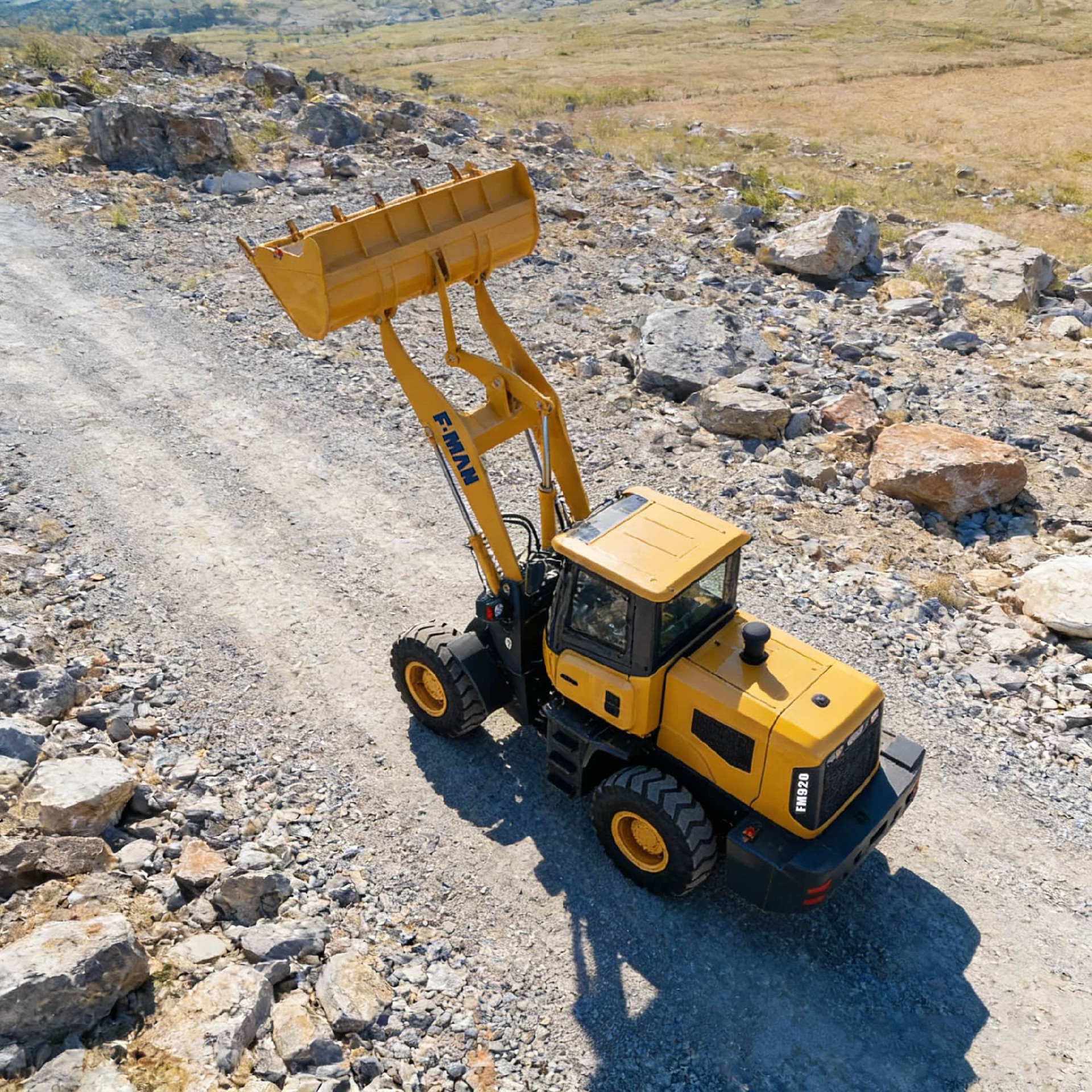

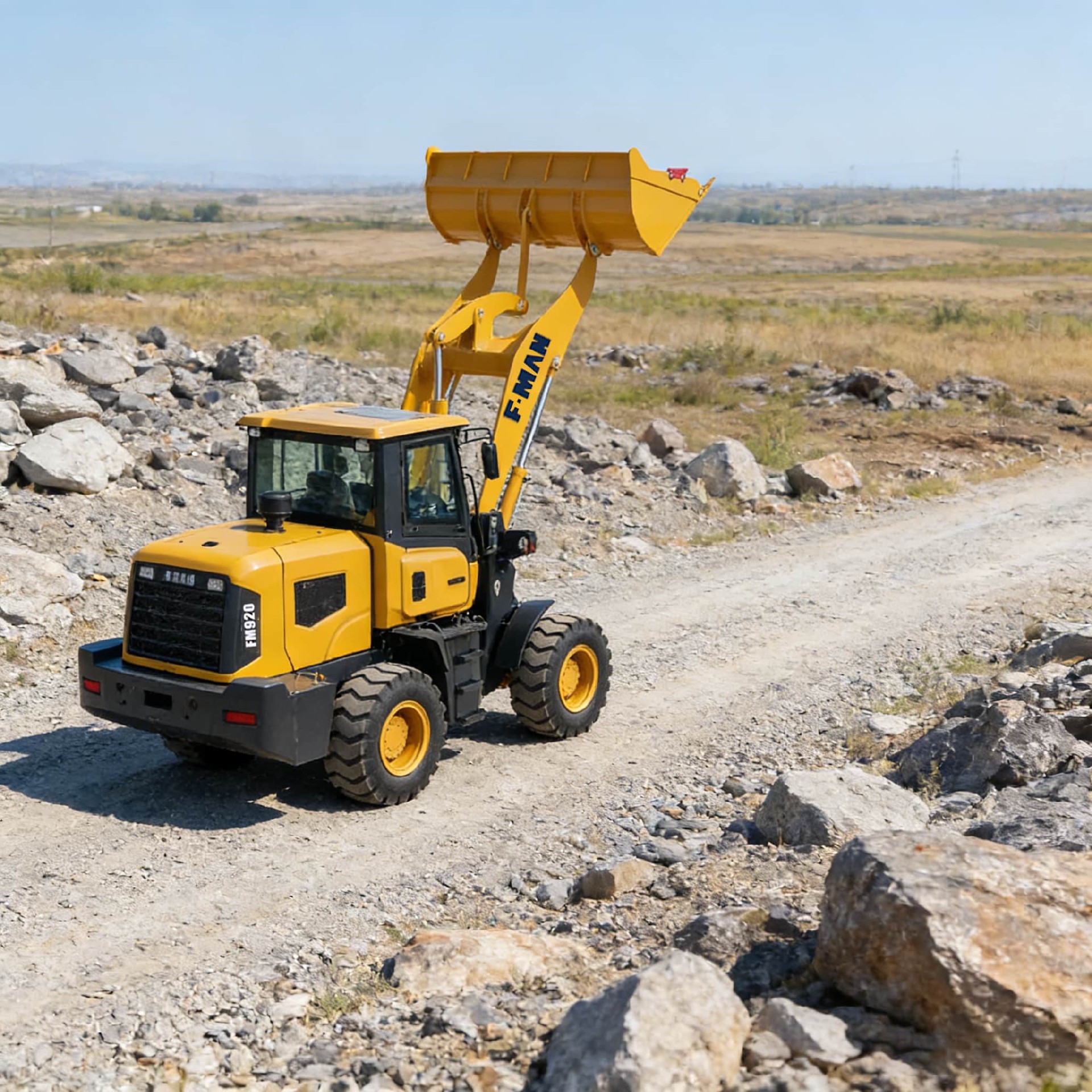

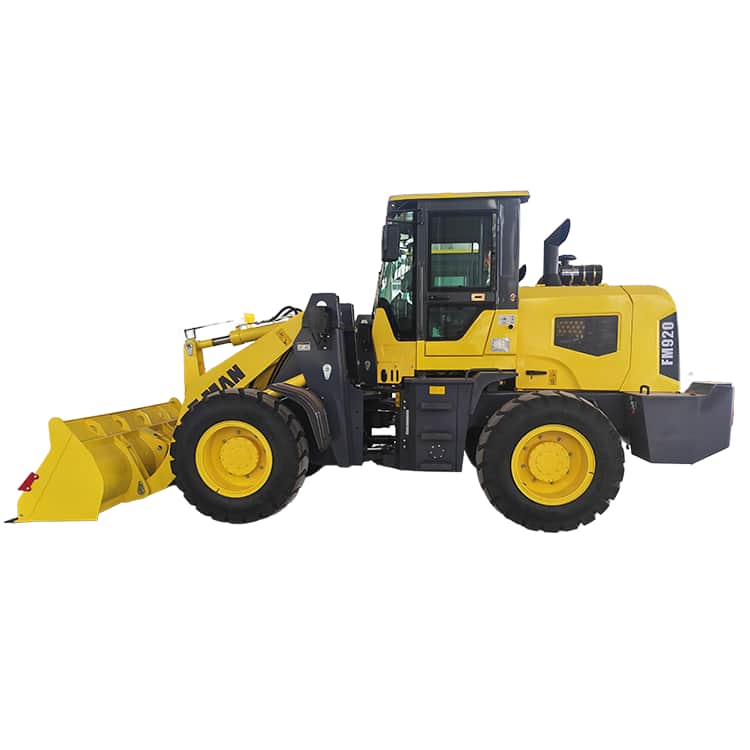

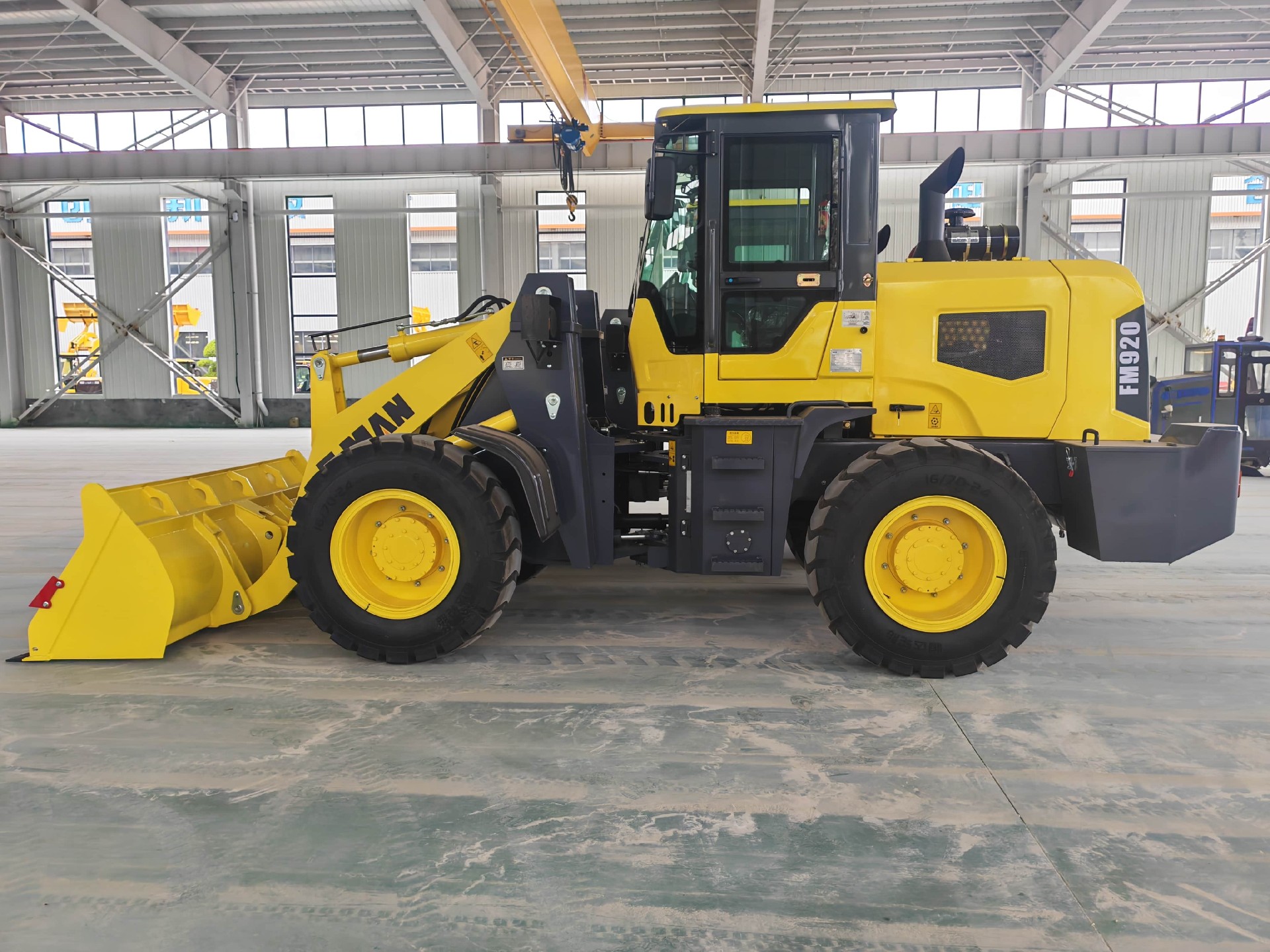

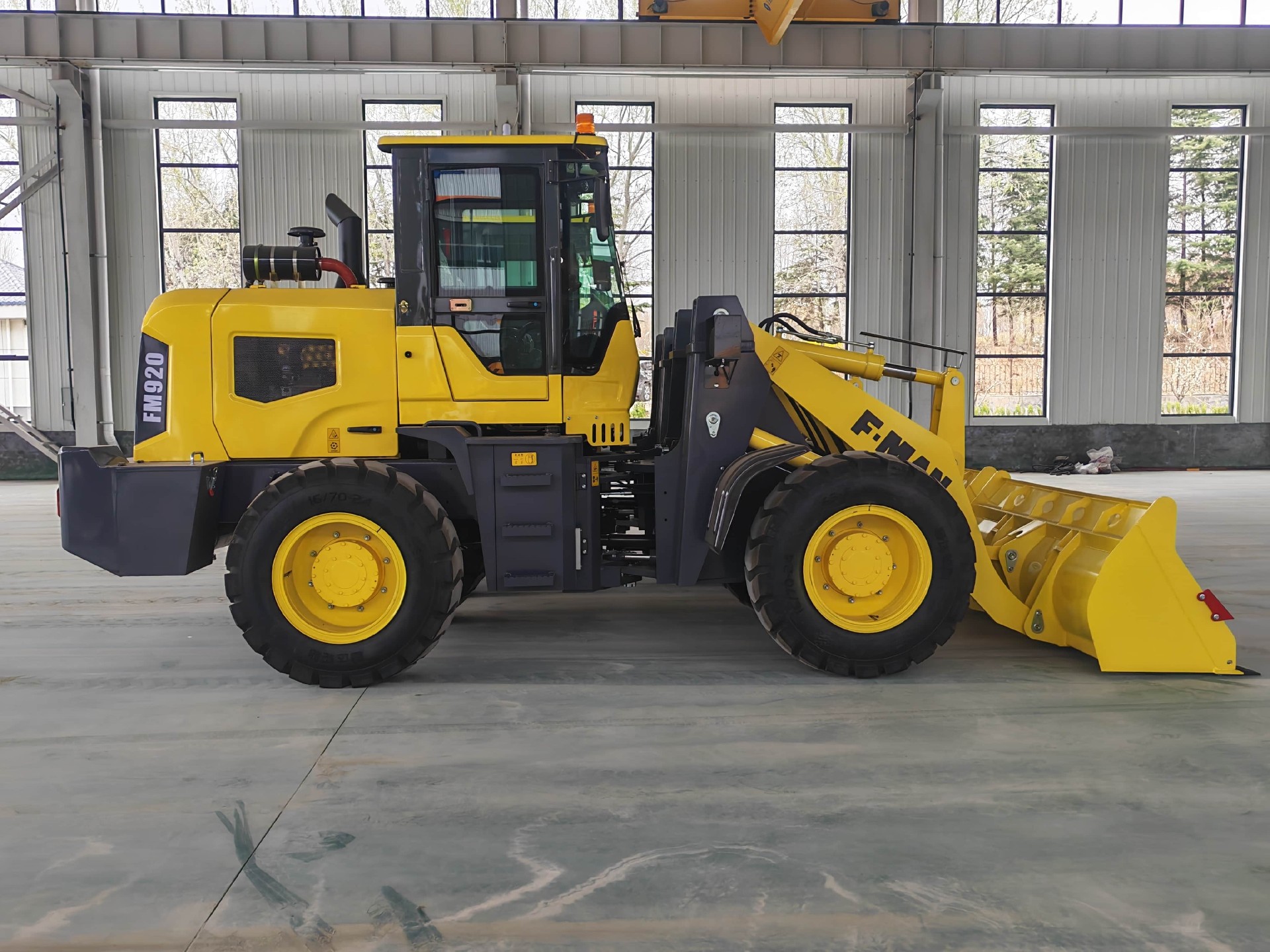

    The FM920 wheel loader is developed for higher intensity and larger load capacity work requirements. It is suitable for earthmoving projects, sand and gravel yards, auxiliary operations in mining areas, and continuous material handling, and is particularly well-suited to construction environments that demand higher efficiency and stability.

    With a rated load of 2000 kg and a large 1.11 m³ bucket, it can complete more efficient material loading in a single operation, significantly improving work efficiency and reducing the frequency of repeated operations. Equipped with a Yuchai engine, the 85 kW rated power provides ample power output and stable response, maintaining reliable performance under high load and long-term operation conditions.

    The 3600 mm discharge height further expands the operating range, allowing for efficient connection with various types of transport vehicles and optimizing on-site work processes. The machine has a robust structure, with a wheelbase and overall dimensions that are rationally matched, ensuring both increased loading capacity and operational stability and controllability.

    The FM920 emphasizes durability and long-term value in its design. Key systems are selected for maturity and reliability, and ample maintenance space facilitates daily inspection and maintenance, effectively reducing downtime and operating costs. It is a practical medium-sized loader solution suitable for high-intensity work scenarios.
