Skid Steer Loader

    FM265TX
    Track
    Common parameters
    Overall size with bucket (mm)3800*1920*2145
    Overall size excluding bucket (mm)3030*1920*2145
    Working height-full lift (mm)4020
    Articulation height -full liftmm3135
    Discharge height-full liftmm2275
    Discharge distance-full liftmm570
    Standard bucket72"
    Flat bucket capacity(m³)0.44
    Overall weight(kg)4242
    Rated load(kg)1100
    Tyre size/
    Track widthmm320
    Maximum driving speedkm/h/
    Dual speed driving speedkm/h6/9
    Engine brandYANMAR
    Engine powerkW/HP61.3/82(National III)
    53.7/71(Euro 5/EPA)
    Hydraulic flowL/min85/135optional
    QTY1 Unit/20GP
    3 Units/40GP

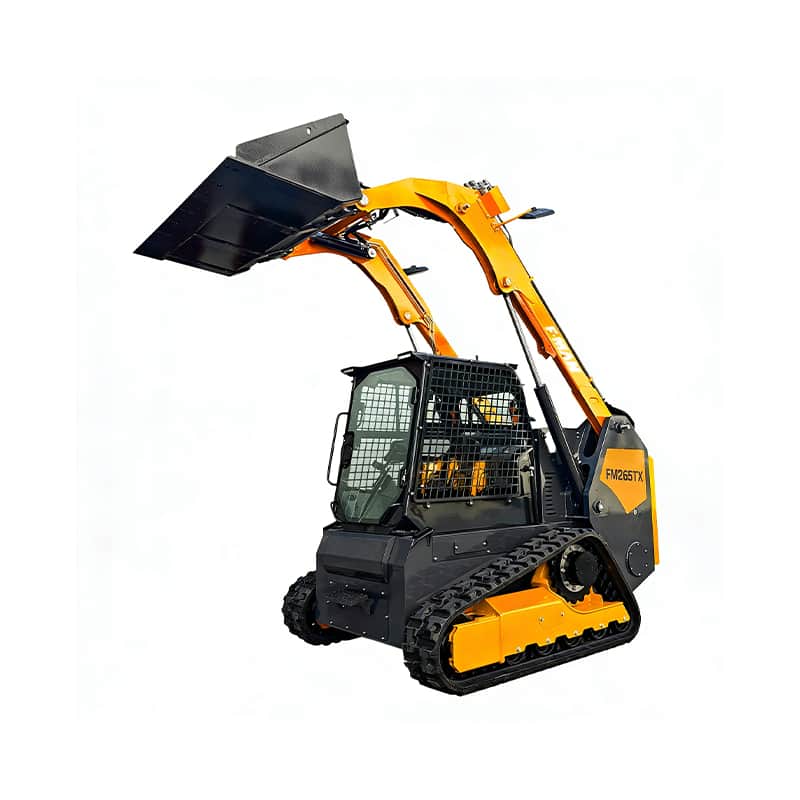

    The FM265TX crawler skid steer loader is a versatile piece of equipment that makes construction work easier and more efficient. Its compact body and flexible operation make it particularly suitable for construction sites with limited space or complex ground conditions.

    The machine has ample load capacity, with a rated load of 1100 kg. Combined with a 0.44 m³ bucket and a 2275 mm discharge height, loading and unloading are completed in one step, significantly reducing repeated operations and making each task more efficient.

    The power system uses a YANMAR engine, providing stable power and excellent fuel efficiency. It supports China Stage III and Euro V / EPA emission standards, making it suitable for both domestic and export projects. The tracked design provides stronger grip and lower risk of slippage, ensuring stable and reliable operation on muddy, soft, or uneven ground.

    With overall dimensions of 3800 × 1920 × 2145 mm, it is easy to transport and maneuver, making it suitable for municipal construction, landscaping, agriculture, and daily maintenance tasks.

    Choosing the FM265TX means choosing not just a piece of equipment, but a reliable, durable, and trustworthy work partner for your construction site.
