Name: CPD30 Electric Forklift
Brand: FMAN

Products

Electric Forklift

Electric Forklift
CPD30 Electric Forklift
Order Online Contact Us
Recommended :
CPD35 Electric Forklift

CPD30 Electric Forklift

CPD20 Electric Forklift

Specifications
Benefits
Option
Attachments

Technical Data		Model	UNIT	CPD30
Features	Powe type			Battery
	Rated load		kg	3000
	Load center distance		mm	500
Dimensions	Overall length	Without forks	mm	2597
	Overall width		mm	1304
	Lit height		mm	3000
	Minimum turning radius		mm	2440
	Height of overhead guard		mm	2180
Wheels,Chassis	Tire size	Front wheel		28x9-15-14PR
Wheels,Chassis	Tire size	Rear wheel		200/50-10
Weight	Self weight	Without load	kg	4695
Performance	Maximum travel speed	Full load	km/h	13
	Maximum travel speed	No load	km/h	14
	Maximum lift speed	Full load	mm/s	300
	Maximum lift speed	No load	mm/s	400
	Battery	Voltage/capacity	V/Ah	80/404
	Motor	Traveling	kW	16.6
	Motor	Lifting	kW	13.5
	Way of control			AC

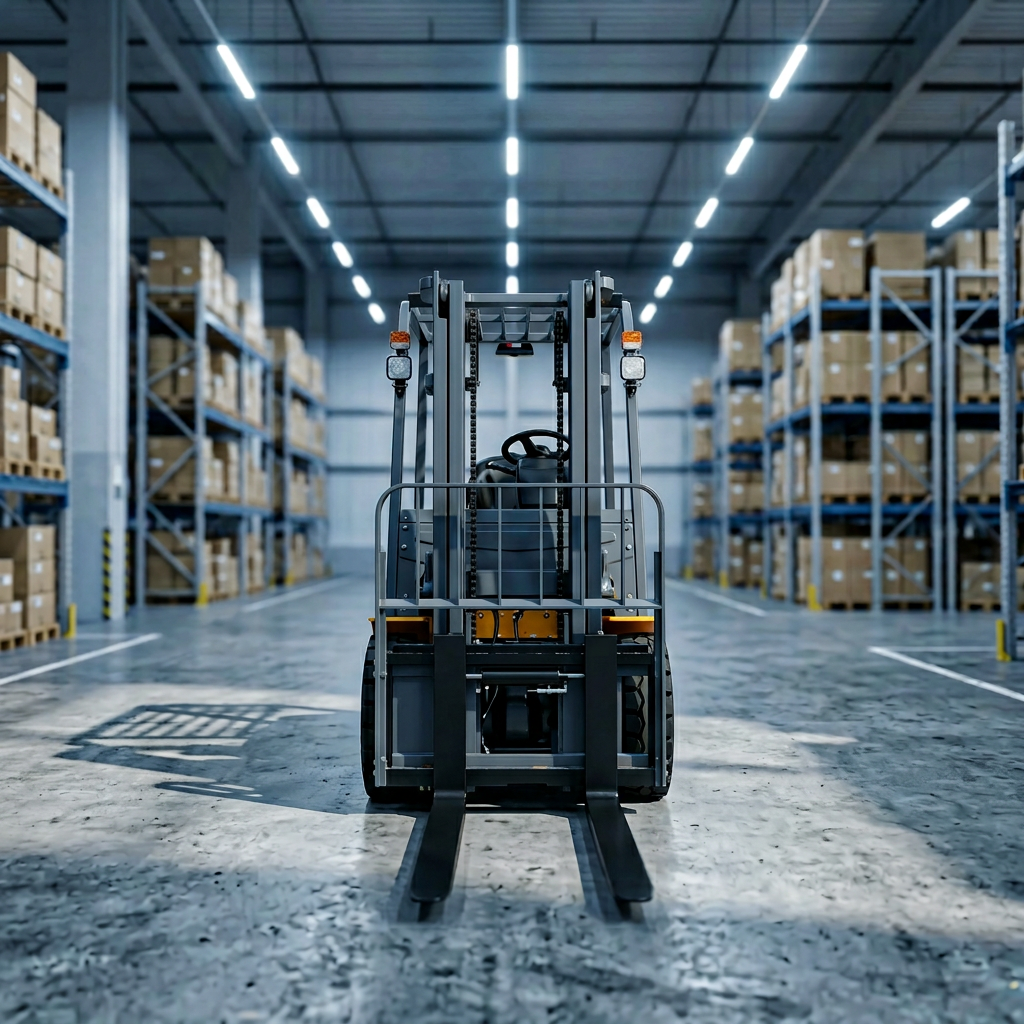

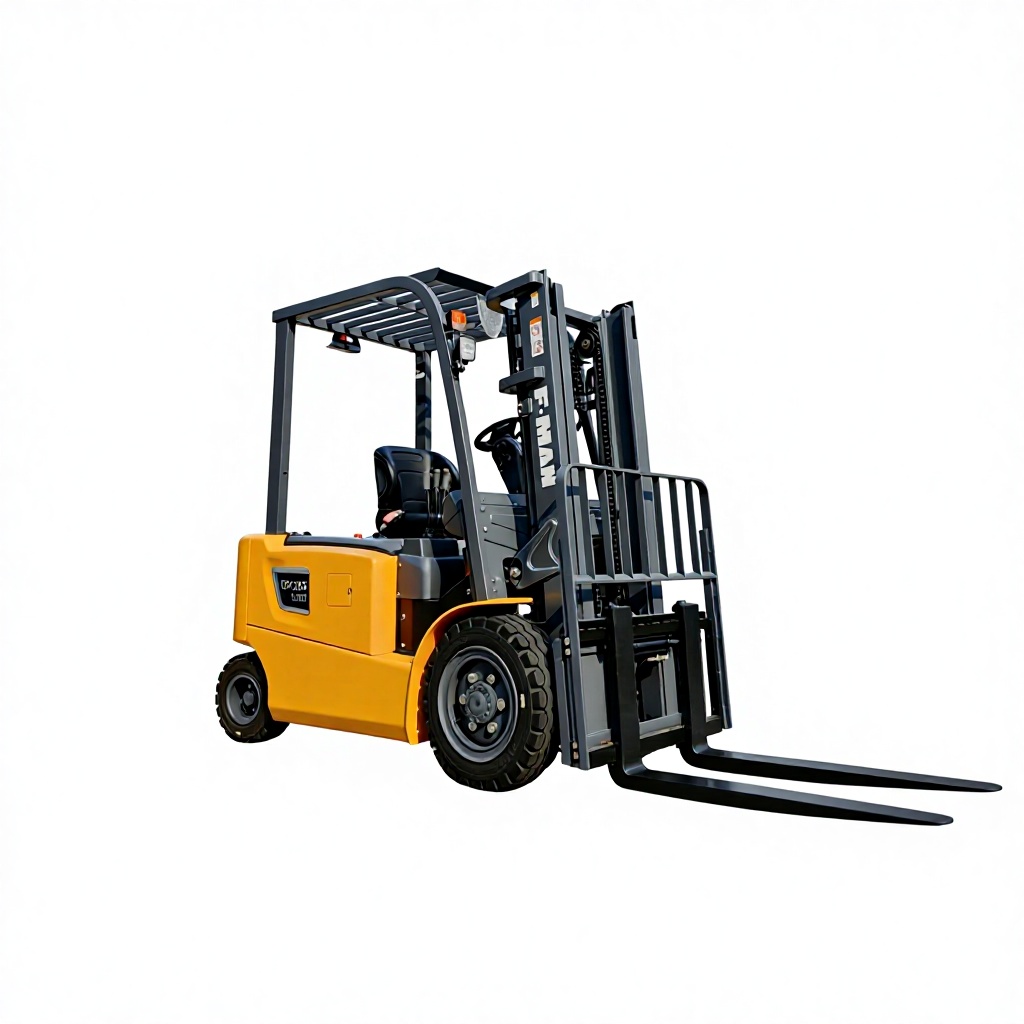

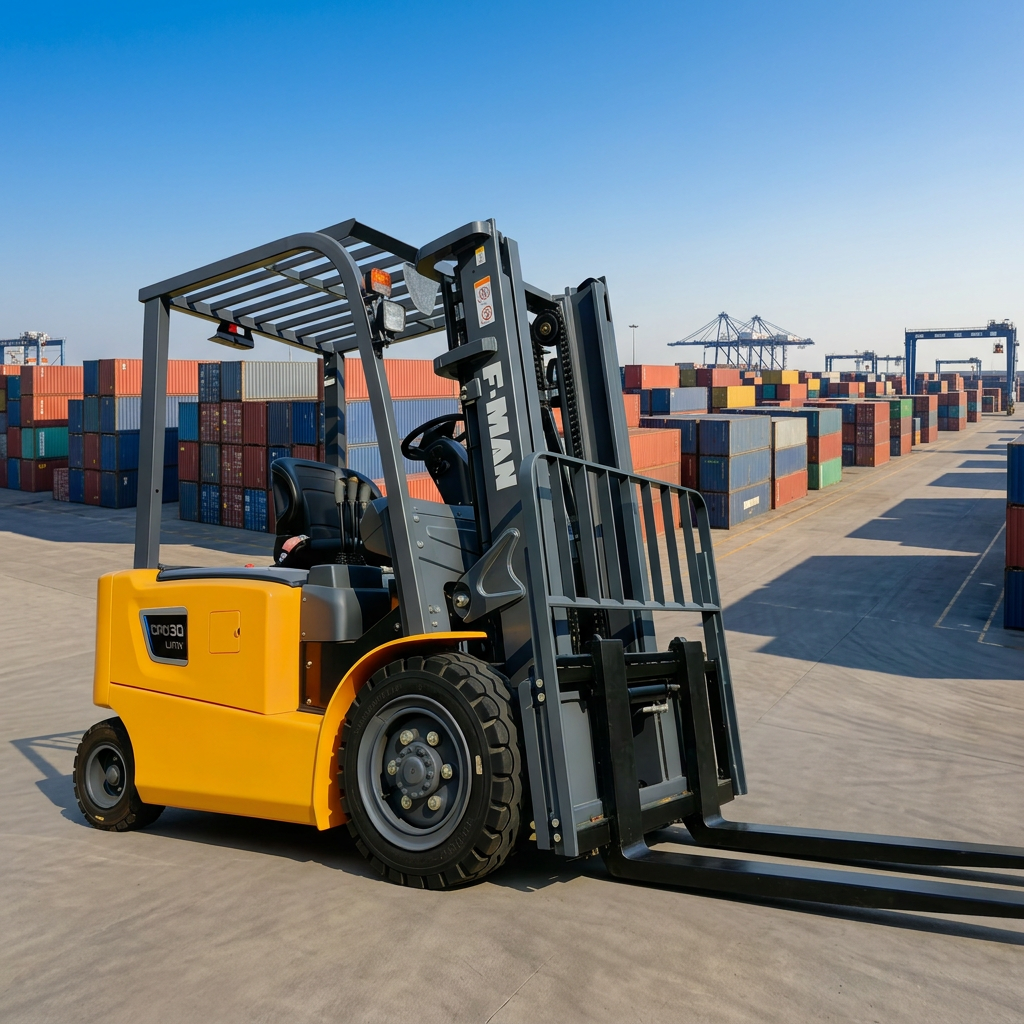

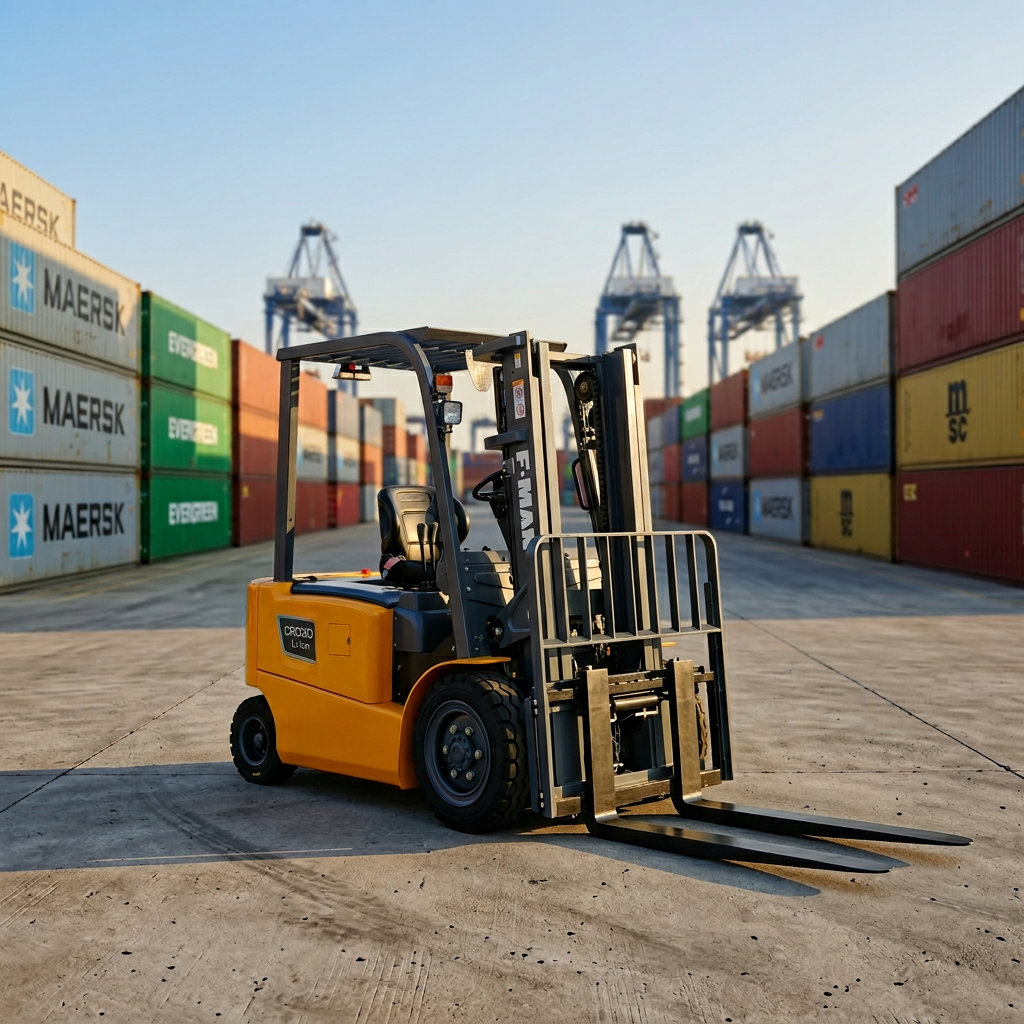

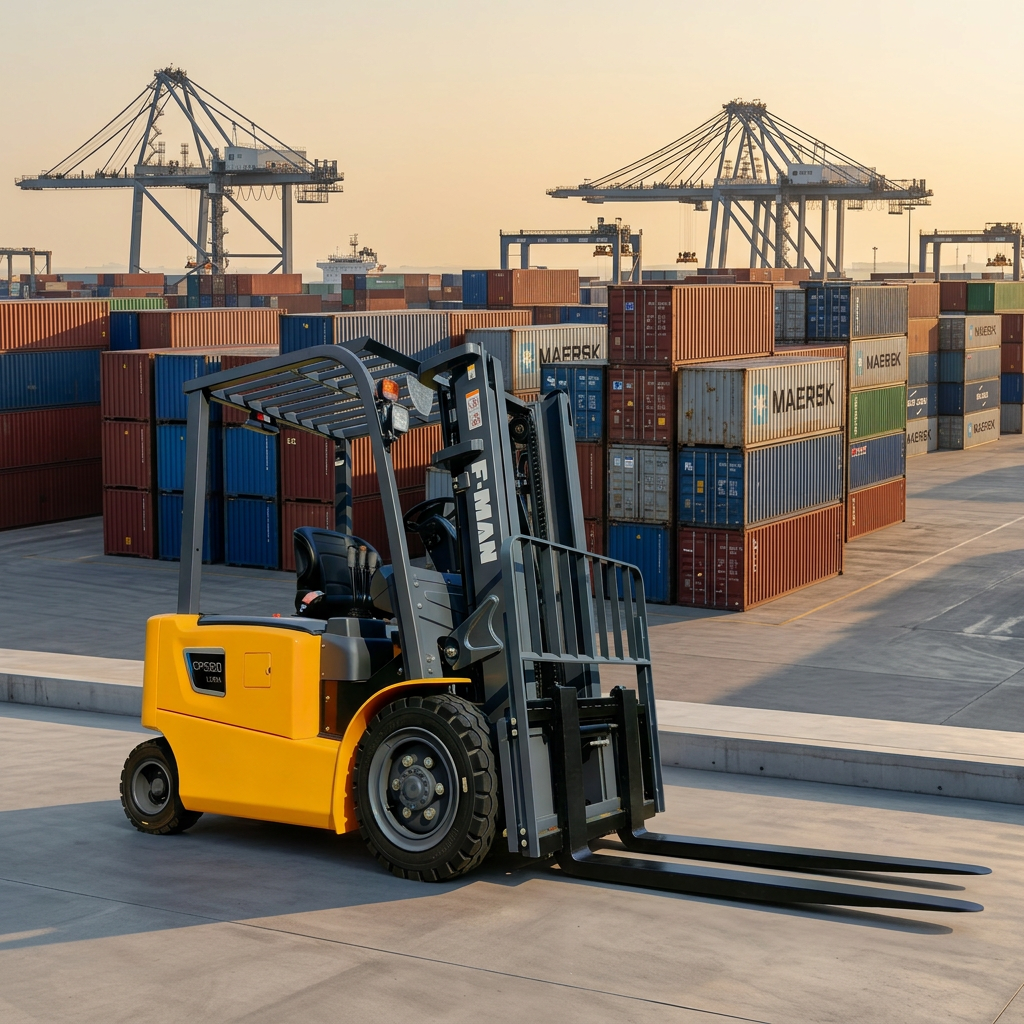

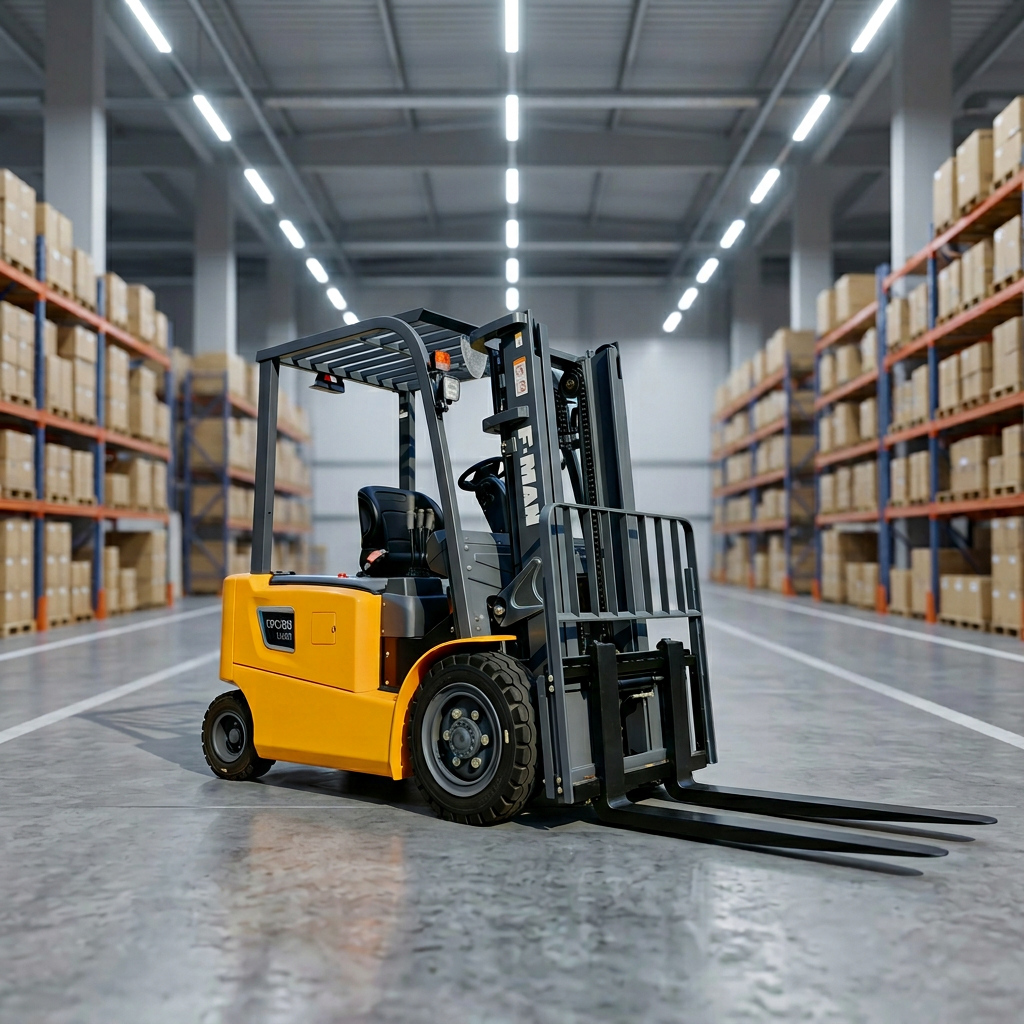

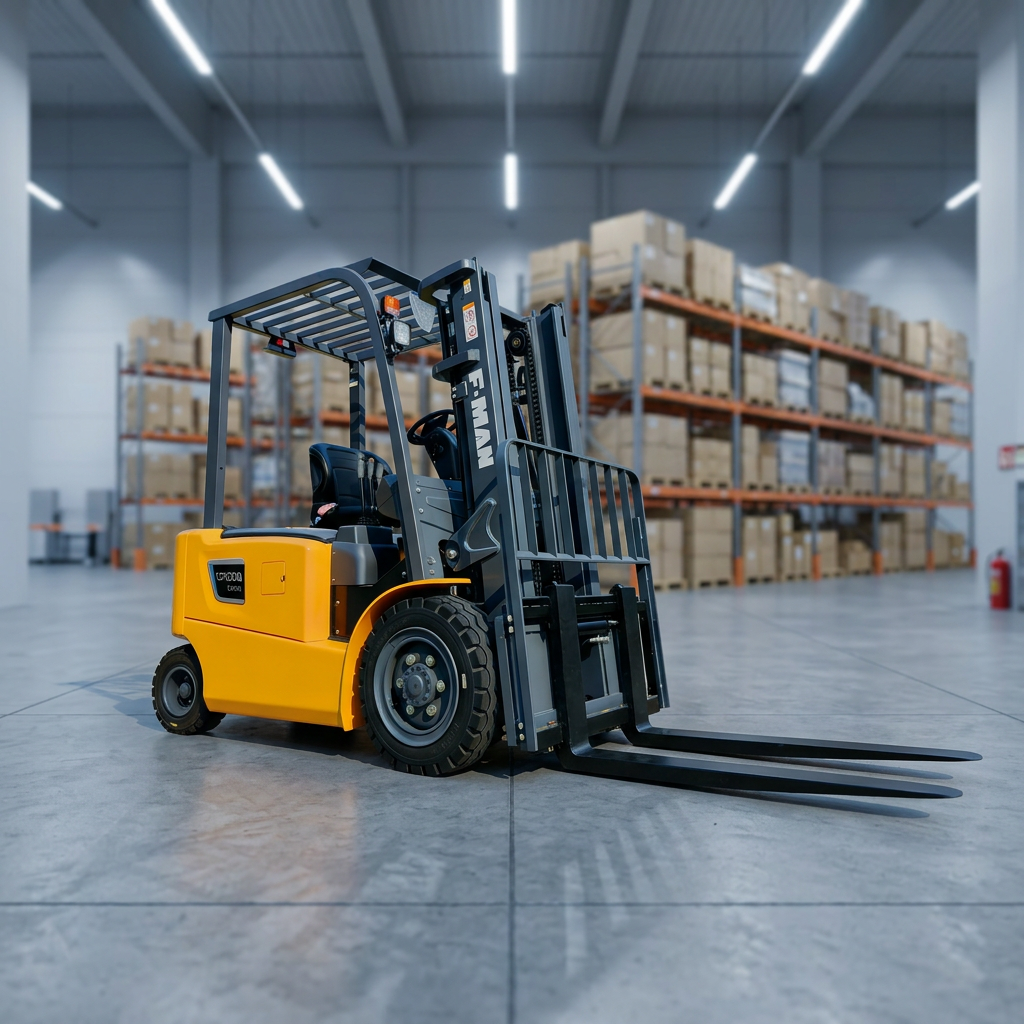

The FMAN CPD30 is a robust 3-ton battery-powered electric forklift, built for heavy-duty material handling in warehouses and industrial logistics hubs. With a 3000kg rated load capacity and 500mm load center, it delivers reliable performance for intensive lifting and transport tasks.

Featuring a 2597×1304×2180mm frame (without forks) and 2440mm turning radius, it ensures stable maneuvering in large workspaces. It reaches a 3000mm lift height, with 300mm/s full-load and 400mm/s no-load lift speeds. Powered by an 80V/404Ah battery, 16.6kW travel motor and 13.5kW lift motor (AC control), it hits 14km/h no-load speed, balancing power and energy efficiency.

Equipped with durable tires and a 4695kg unladen weight, it guarantees safe, stable operation. Its zero-emission, low-noise design is ideal for indoor environments, while easy maintenance cuts long-term operating costs.
