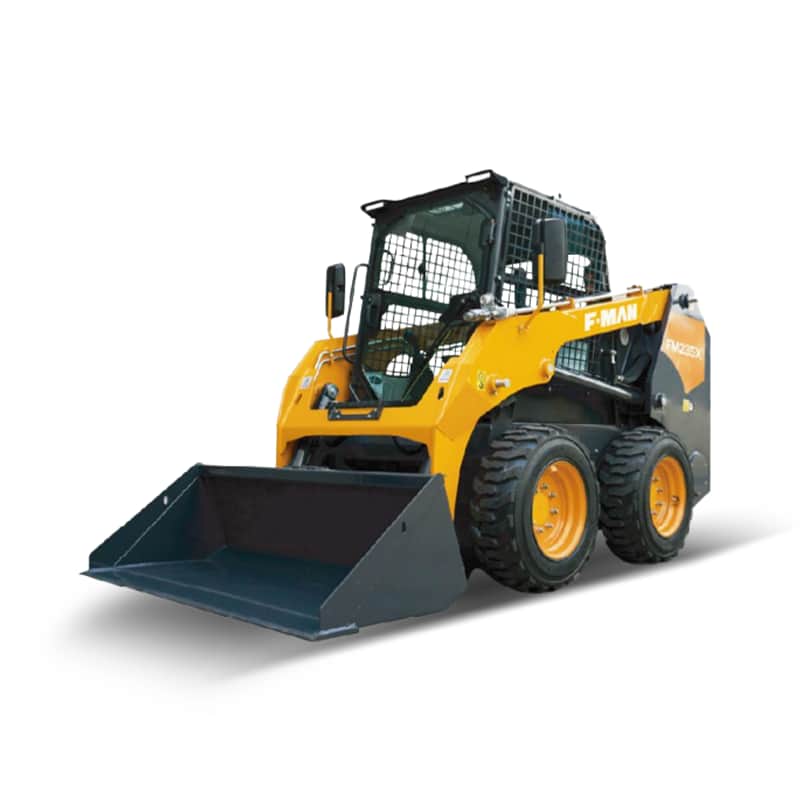

Name: FM235X Skid Steer Loader
Brand: FMAN

Products

Skid Steer Loader

Skid Steer Loader
FM235X Skid Steer Loader
Order Online Contact Us
Recommended :
FM240 Skid Steer Loader

FM235X Skid Steer Loader

FM275X Skid Steer Loader

Specifications
Benefits
Option
Attachments

		FM235X
		Wheeled
Common parameters
Overall size with bucket (mm)		352517302011
Overall size excluding bucket (mm)		276516762011
Working height-full lift (mm)		3970
Articulation height -full lift（mm）		3021
Discharge height-full lift（mm）		2270
Discharge distance-full lift（mm）		658
Standard bucket		66"
Flat bucket capacity(m³)		0.4
Overall weight(kg)		2988
Rated load(kg)		800
Tyre size		10-16.5
Track width（mm）		/
Maximum driving speed（km/h）		12.6
Dual speed driving speed（km/h）		/
Engine brand		YANMAR
Engine power（kW/HP）		34.6/46(National III) 35.5/47(Euro 5/EPA)
Hydraulic flow（L/min）		80
QTY		2 Units/20GP 4 Units/40GP

The FM235X is a skid steer loader that combines efficiency, flexibility, and reliability. With a total weight of only 2988 kg, it can handle a working load of 800 kg, allowing for easy operation even in confined spaces.

Equipped with a 0.4 cubic meter bucket and a 2270 mm discharge height, it can quickly load and transport soil, sand, gravel, and building materials. Powered by a high-performance YANMAR engine, providing 34.6 kW / 46 HP (National III) or 35.5 kW / 47 HP (Euro 5/EPA), it offers ample power and fuel efficiency to easily complete demanding tasks.

The compact 3525 × 1730 × 2011 mm body allows the FM235X to maneuver freely in narrow spaces, warehouses, and landscaping sites, offering flexible operation and high efficiency. Whether for landscaping, industrial handling, or small-scale construction, it is a reliable and capable assistant.
