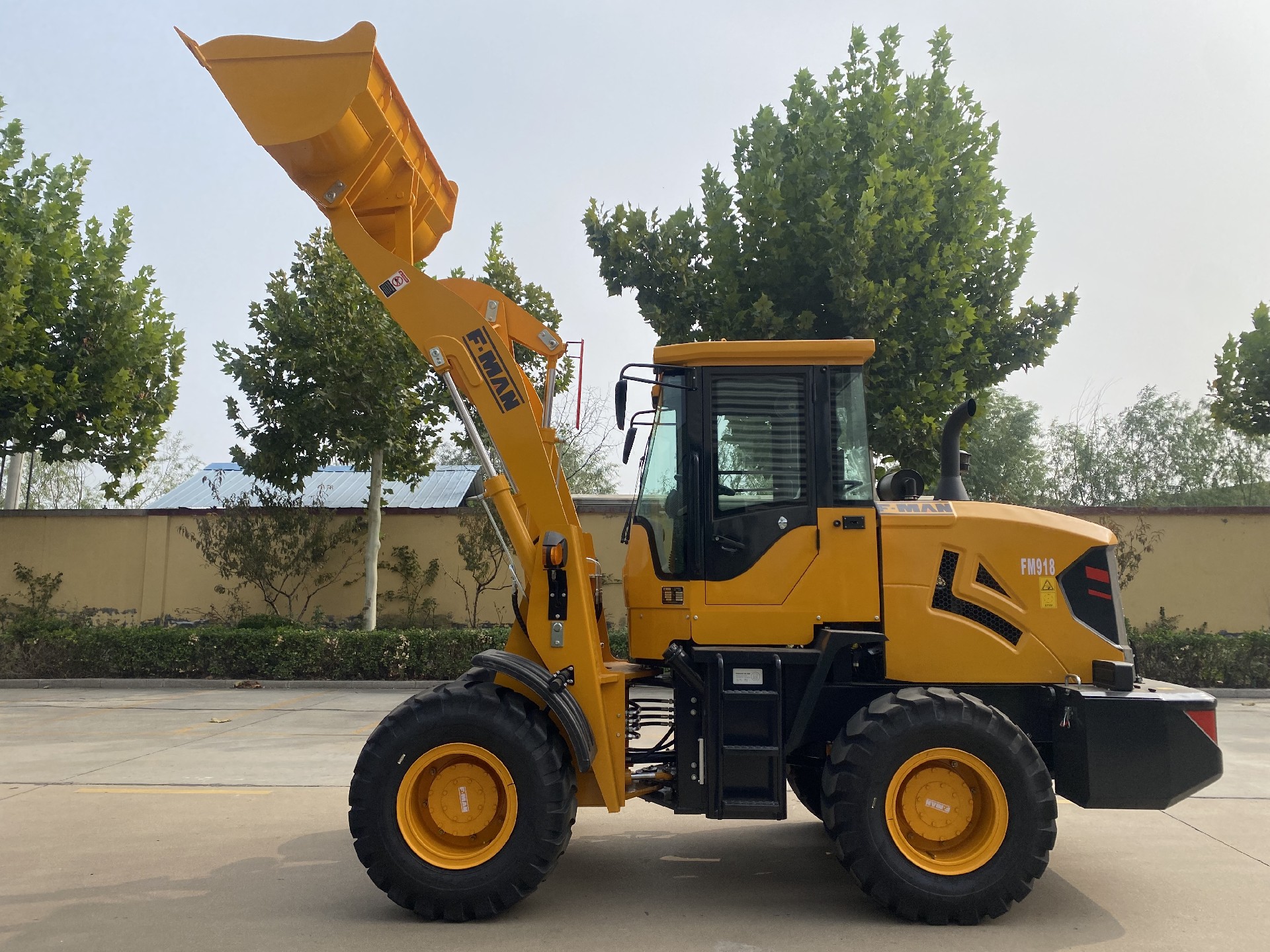

Wheel Loader

    Performance

    1

    rated load

    5000kg

    2

    overall weight

    17200kg

    3

    rated bucket capacity

    3m3

    4

    maximum tractive force

    150KN

    5

    maximum breakout force

    ≥175KN

    6

    maximum grade ability

    30

    7

    maximum dump height

    3100mm

    8

    maximum dump reach

    1200mm

    9

    overall dimension (L×W×H)

    8150*3030*3400mm

    10

    minimum turning radius

    6732mm

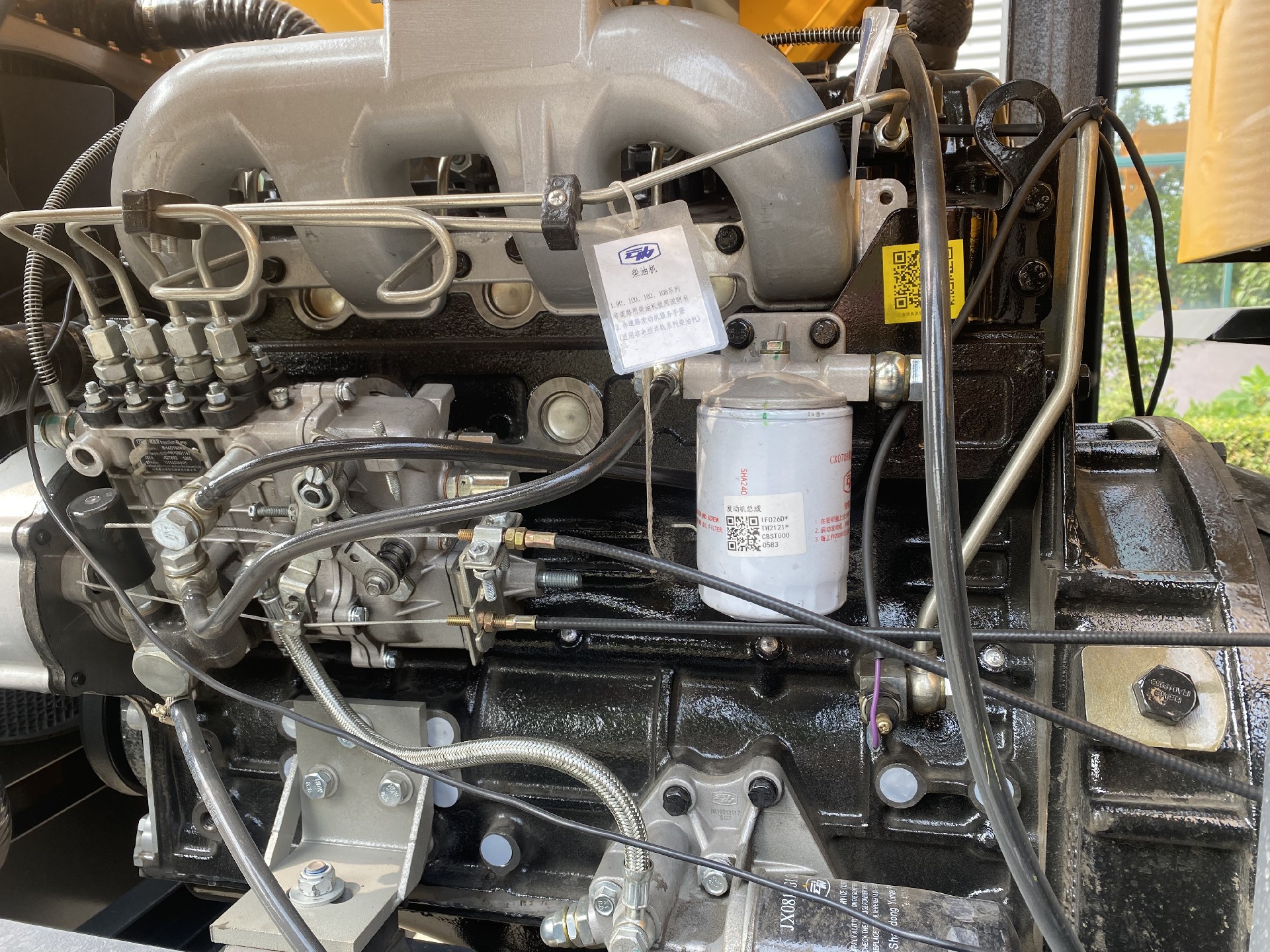

    Engine

    11

    model

    Weichai WD10G220E22

    12

    type

    lnline  water cooling dry cylinder  injection

    13

    No. of cylinder-bore/stroke

    6126×130mm

    14

    rated power

    162kw--2200r/min

    15

    maximum torque

    980N.m

    16

    min fuel-consume ratio

    ≤212.7g/kw.h

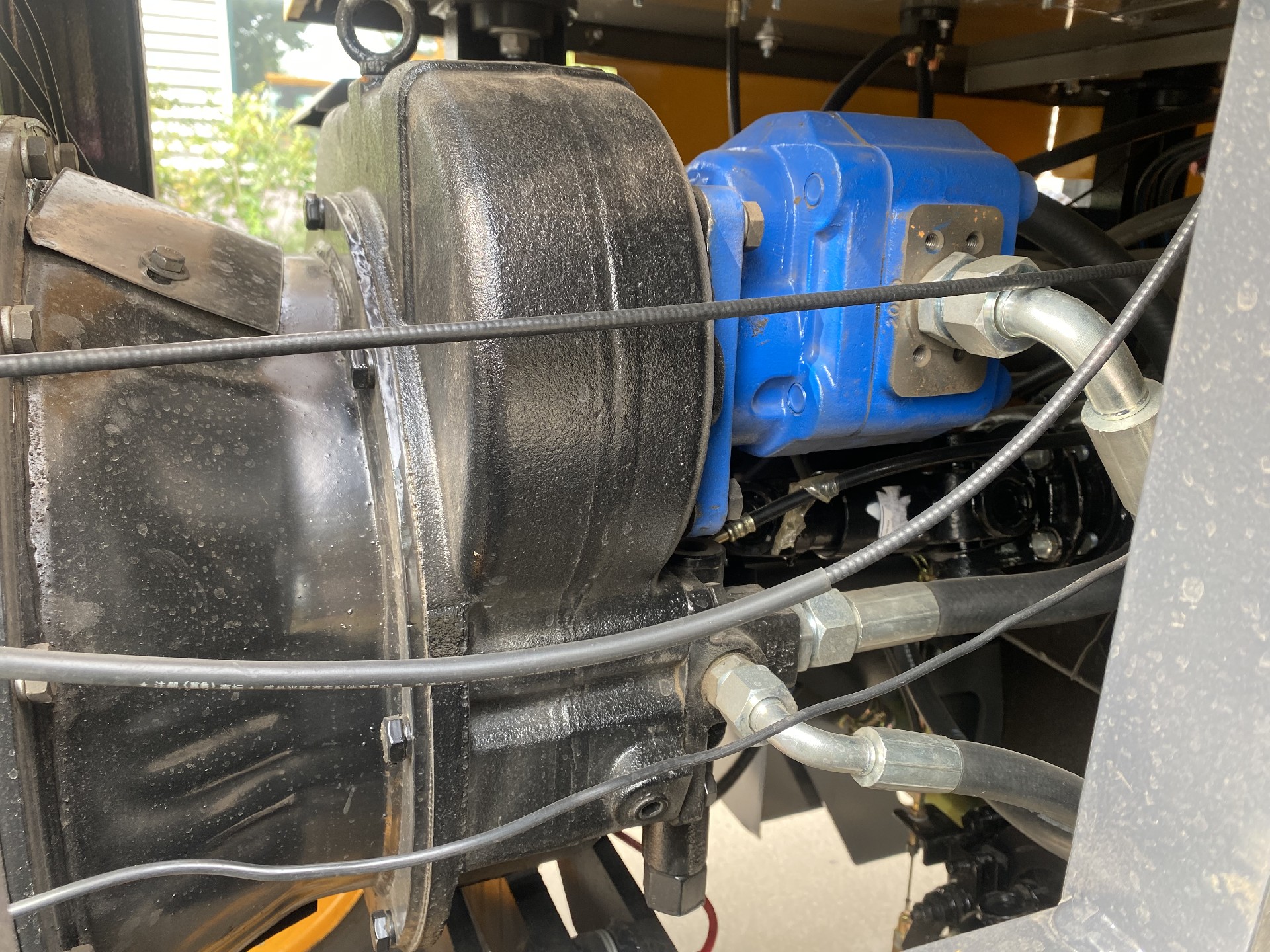

    Transmission system

    17

    torque converter

    Single stage two phase four components

    18

    gearbox mode

    Power shift planetary structure

    19

    gear shift

    2 forward shift  1 reverse shift

    20

    maximum speed

    38km/h

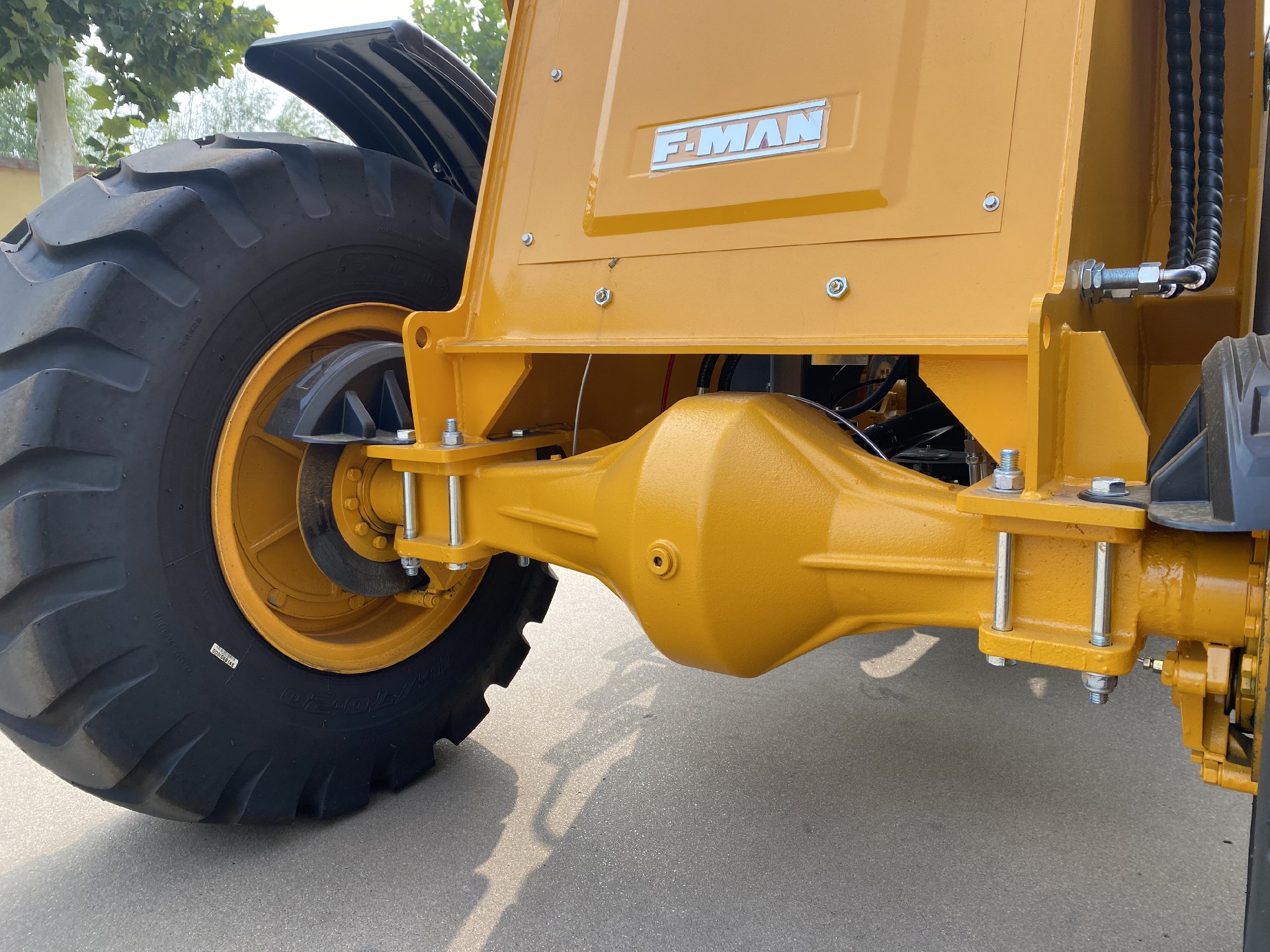

    Drive axles

    21

    Main reducing spiral



    bevel gear grade 1reduction

    22

    decelerating mode

    planetary reduction,grade 1

    23

    wheel base (mm)

    3200mm

    24

    wheel tread(mm)

    2250mm

    25

    minimum ground clearance

    450mm

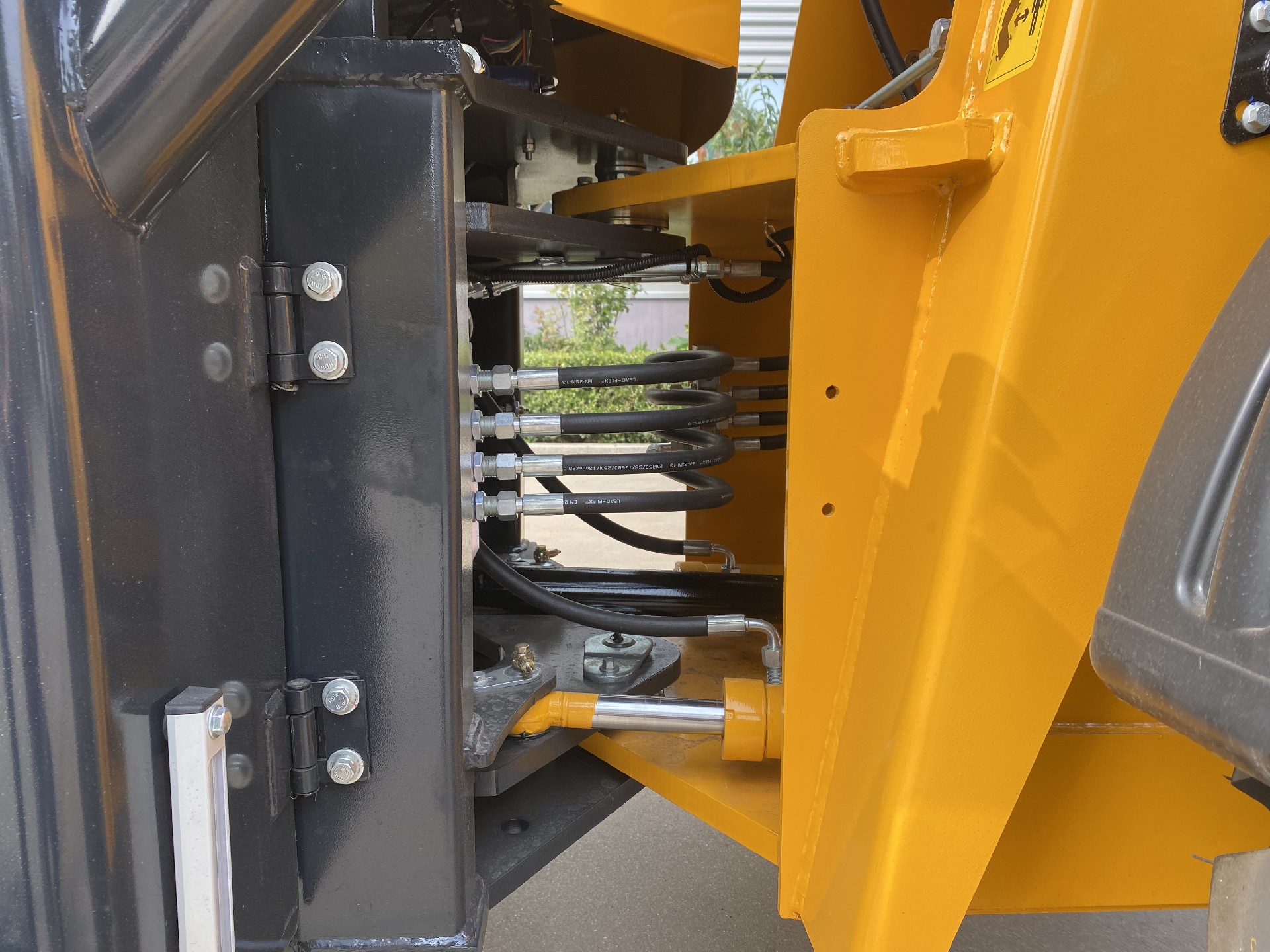

     Hydraulic system

    26

    system working pressure

    18MPa

    27

    boom lifting time

    5.1s

    28

    total time

    9.3s

    29

    fuel tank capacity

    292L

    30

    function of leveling automatically

     yes



    Brake system

    31

    service brake

    air over hydraulic disc brake on 4 wheels

    32

    parking brake

    Break air brake



    Tyre

    33

    type specification

    23.5-25

    34

    Front wheel air pressure

    0.4Mpa

    35

    Rear wheel pressure

    0.35Mpa



      Air Conditioner
