2

overall   weight

17200kg

3

rated   bucket capacity

3.0

4

maximum   tractive force

160KN

5

maximum   breakout force

≥180KN

6

maximum   grade ability

38℃

7

maximum   dump height

3100mm

8

maximum   dump reach

1200mm

9

overall   dimension (L×W×H)

8453×3024×3385mm

10

minimum   turning radius

6201mm

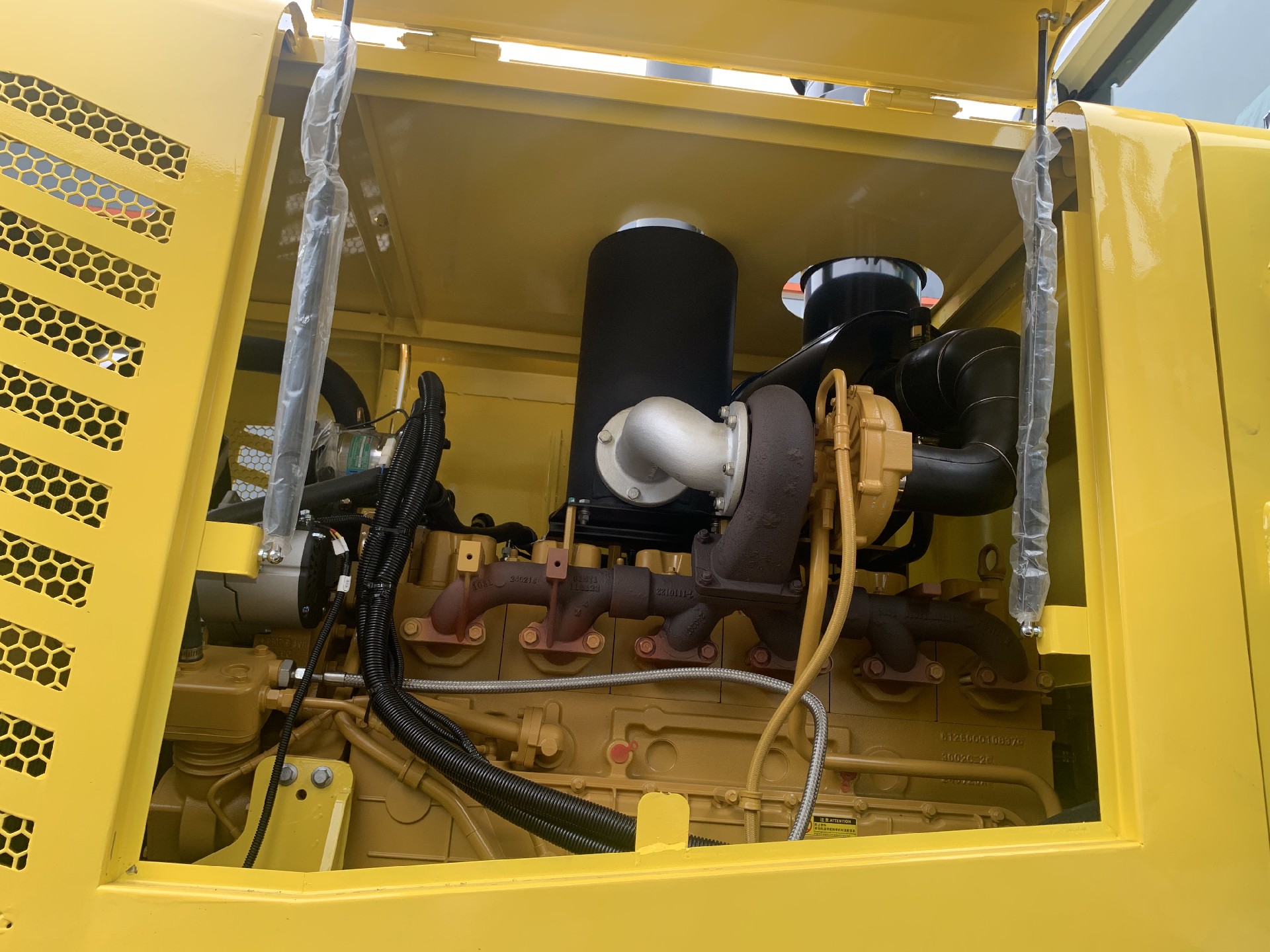

Engine

11

model

WeichaiWP10G220E22

12

Emission standards

lnline  water cooling dry cylinder  injection

13

No. of cylinder-bore/stroke

6－126×130mm

14

rated   power

162kw--2200r/min

15

maximum   torque

920N.m

16

min   fuel-consume ratio

≤215g/kw.h

Transmission system

17

torque   converter

Single-stage four-element twin-turbine torque converter

18

gearbox mode

Planetary power transmission

19

gear   shift

2 forward shift  1reverse shift

20

maximum   speed

38km/h

Drive axles

21

main   reducing spiral

bevel gear grade 1reduction

22

decelerating   mode

planetary reduction,grade 1

23

 wheel   base (mm)

3200mm

24

 wheel   tread

2250mm

25

minimum   ground clearance

450mm

Hydraulic system

26

system   working pressure

18MPa

27

 boom   lifting time

5.95±0.2s

28

 total   time

10.95±0.5s

29

fuel tank capacity

265L

30

function of leveling automatically

yes

Brake system

31

service   brake

air over hydraulic disc brake on 4 wheels

32

parking   brake

manual parking brake

Tyre

33

type   specification

23.5-25

34

front   tyre pressure

0.4Mpa

35

rear   tyre pressure

0.35Mpa
