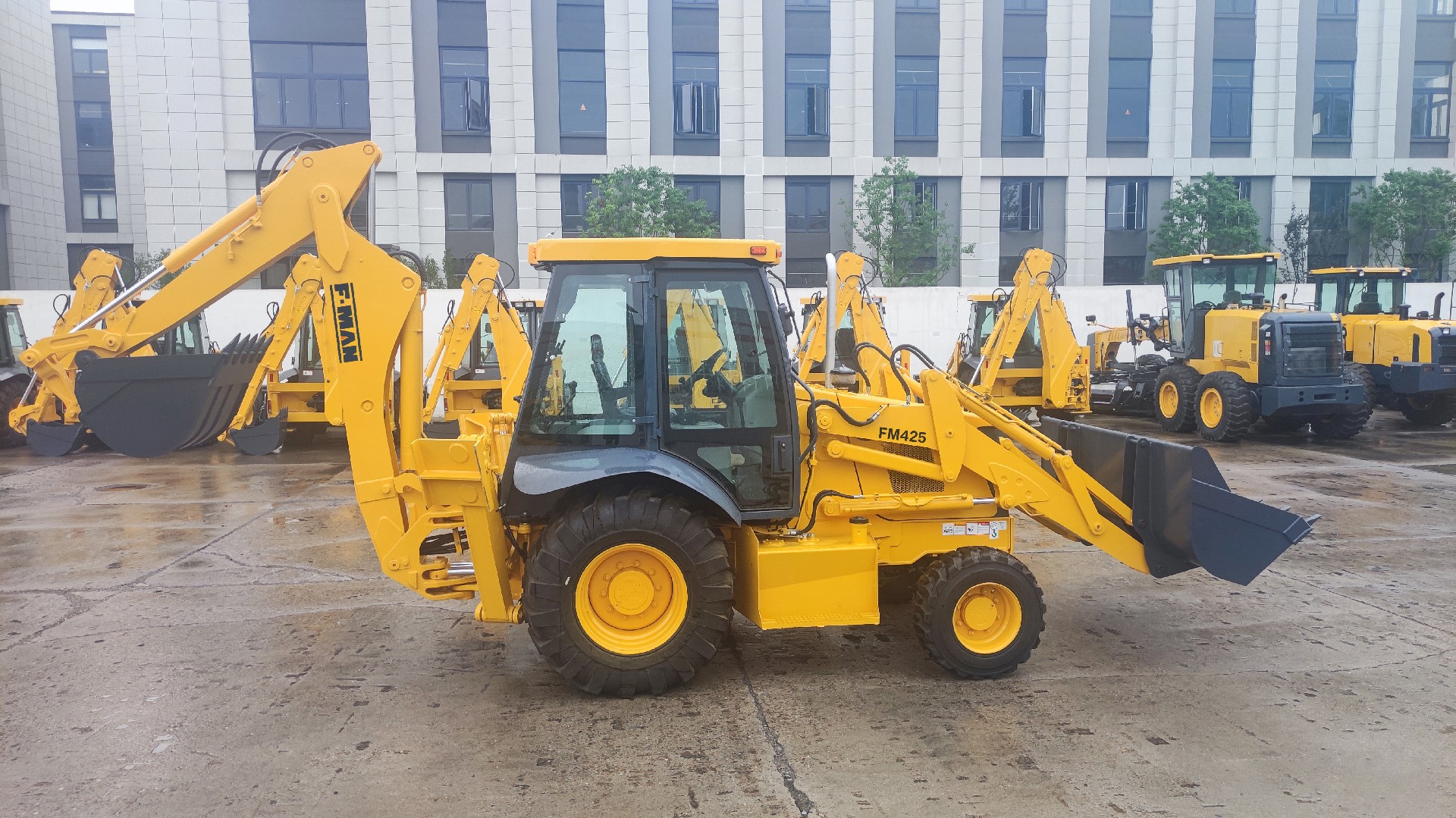

Backhoe Loader

                                                            MODEL
    FM425S
        (standard boom/telescopic boom)
    FM425
        (standard boom/telescopic boom)
    Rated Load25502530
    Bucket   Capacity1.21.1
    Operating   Weight100309000
    Dumping Height30503120
    Dumping   Distance8701185
    Transmission   model315YYJ280
    Transmission modeHydraulic  Hydraulic
    Low gear56
    High gear3522
    Maxmum   steering angle土18°土45°
    Length64506400
    Width26002406
    Height33002980
    Bucket width24202406
    Wheelbase23502225
    Track width20301805
    Minimum ground   clearance380310
    Engine model4108   Turbo4108   turbo
    Engine   manufacturerYUCHAIYUCHAI
    Rated power7575
    Rated speed22002200
    Axle          ZL30 Steerable Axle(F)WZZD75D
        (R)ZL30
    Tyre16.9-28(F)14-17.5
        (R)19.5L-24
    Service brake          Air Over Oil Caliper BrakeAir   Over Oil Caliper Brake
    Parking brake                 Hand Operated Disc Brake                  Hand Operated Disc Brake
    Outside of   bucket64206600
    Backhoe bucket   capacity0.3/0.30.3
    Max. digging   depth3820/43503510/4320
    Max. digging   radius5045/65005565/6480
    Max.dumping   height3740/44703725/4460
    Max.digging   height5470/60505370/6050
     Max. digging radius lifting capacity1220/12201220/1220


      Air Conditioner
