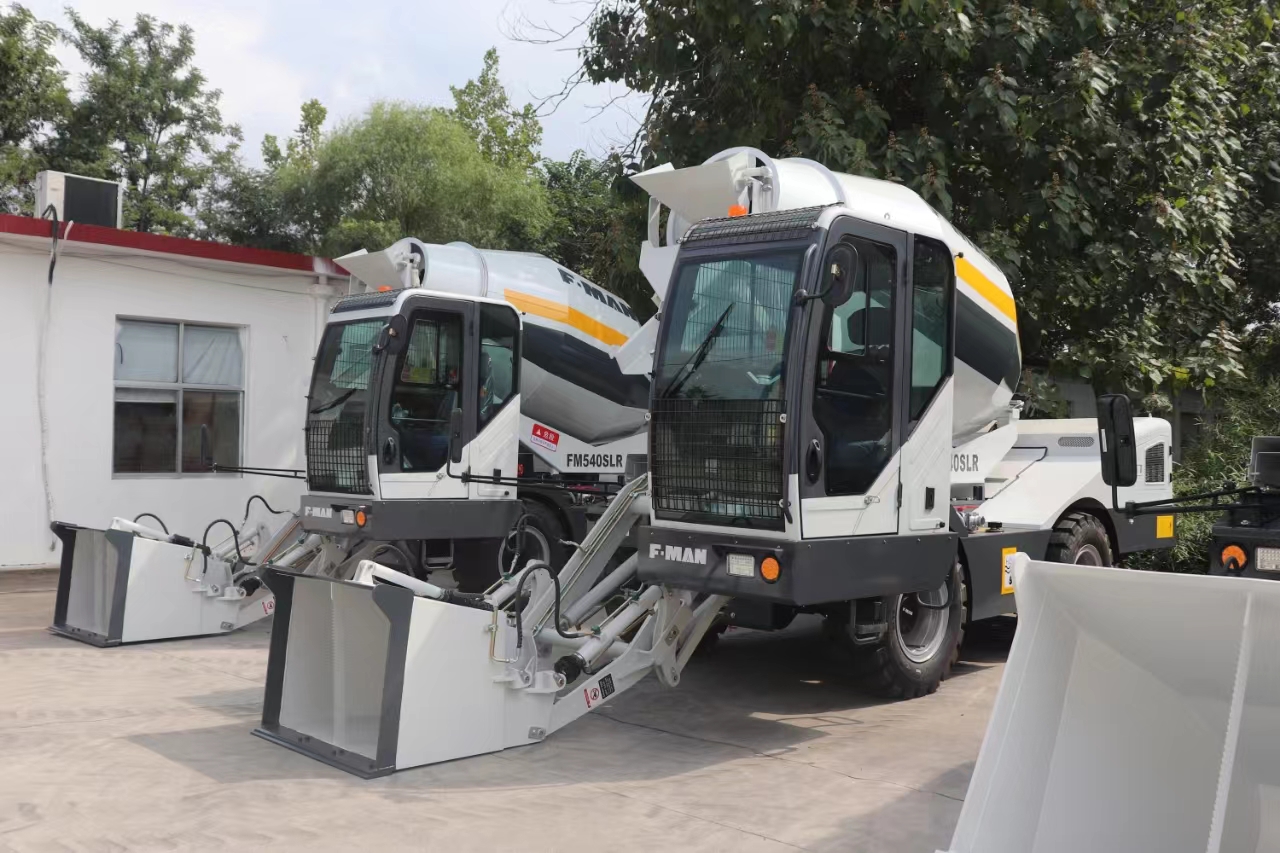

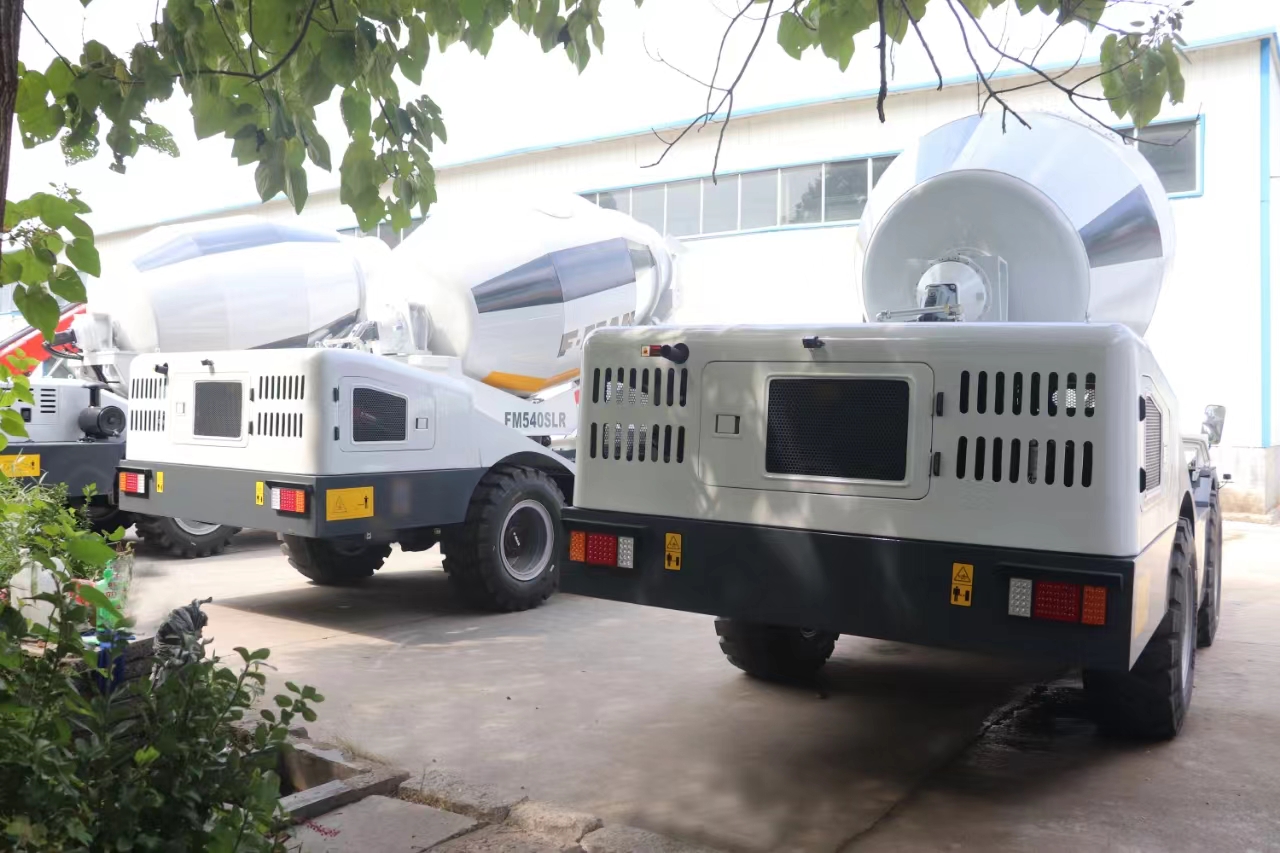

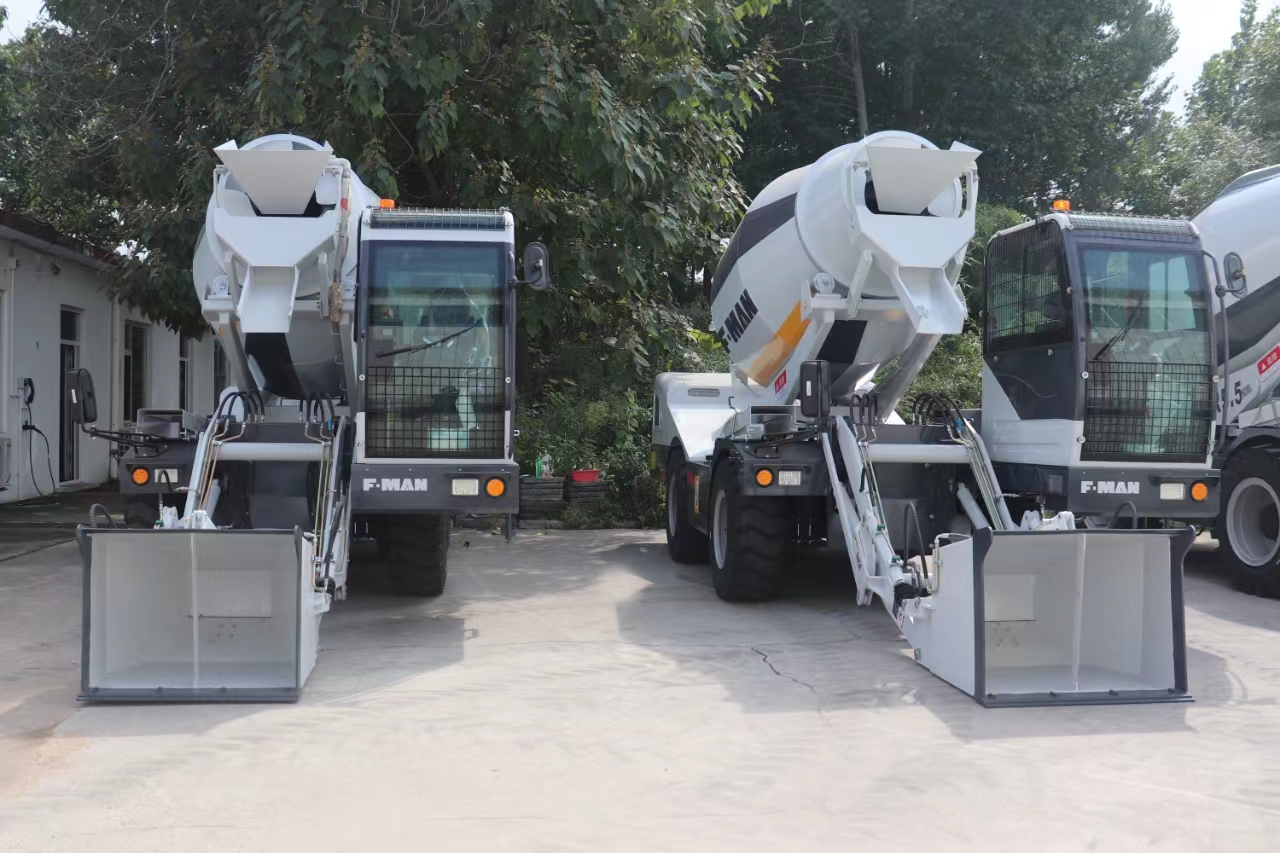

| MODEL NO | FM550SLR |
| TYPE | Integral frame chassis movable, self loading, mixing, transporting |
| FUNCTION | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| PRODUCTIVITY | （22cph）,5 BATCHS/HOUR |
| DRIVE | Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4 |
| STEERING | rear wheel steering |
| ENGINE | YUCHAI ENGINE: FOUR-CYLINDER 2200RPM,110KW |
| SPEED | HIGH SPEED: 38.5KM/H; LOW SPEE:7.5KM/H |
| CLIMBING ABILITY | 30° |
| GEAR NUMBERS | three forwards, three backwards |
| FUEL CONSUMPTION | Idle state 2L-3L, working state 8L-10L. |
| TIRE | 16/70-20 wire tires |
| DRUM | Geometric volume 6.8 cubic meters, the best stirring 4.5-5.5 cubic meters |
| SPIRAL BLADE IN TANK | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
| TILT OF MIXING TANK | 16° |
| SHOVEL | 0.72m³ |
| BUCKET DISCHARGE SWITCH | Hydraulic gate, electric control |
| OPERATION HANDLE | A four-way hydraulic pilot with an electric control button controls the bucket. |
| TIPPING CHUTE | Equipped with two removable shaft pins to increase the discharge length. |
| MOVING HYDRAULIC | Torque converter（Soyota） |
| BRAKE | inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub. |
| WORK HYDRAULIC | PUMP/valve: FARSEE |
| MIXING SYSTEM | SPEED REDUCER:（Soyota）
Mixing motor（FMAN） |
| WATER SUPPLY | HYDRAULIC DRIVING SELF-PRIMIING PUMPS. |
| HIGH-PRESSURE WATER PUMP WASH | HIGH-PRESSURE WATER PUMP WASH |
| VOLTAGE | Battery 24V-100A 2 pieces |
| DRICE AXLE | CAN |
| WEIGHING SYSTEM | Electronic weighing system (language optional） |
| HYDRAULIC OIL BOX | TANKAGE190L, SUMMER:NO68 HYDRAULIC OIL, WINTER:NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL |
| Water tank capacity | 620L |
| Diesel tank capacity | 190L |
|
| whole weight | 7600kg |
| Dimension | 7820*2850*3400mm |
